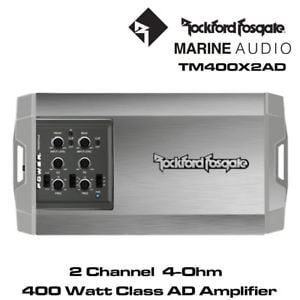

TM400X2AD Amplificatore Rockford Fosgate

Rockford Fosgate TM400x2AD amplificatore ad alta efficienza a 2 canali per nautica, Classe AD, potenza 400 Watt

TM400x2AD è un amplificatore a 2 canali ultra-compatto con una potenza di 400 Watt realizzato per resistere alle condizioni ambientali nautiche. La sua Classe AD, realizzata in Rockford Fosgate, garantisce una potenza costante in uscita, sia a 4 Ohm, che a 2 Ohm.

Caratteristiche TM400x2AD:
Rockford Fosgate tecnologia Classe AD
4/2 Ohm muti-impedenza con potenza costante
Ingressi differenziali di alto livello con auto turn-on
Alimentazione a terra 8 AWG e ingressi RCA
funzione Remote-out quando si utilizzano gli ingressi di alto livello
Funziona a 4 Ohm a ponte
C.L.E.A.N. ingresso / uscita di rilevamento Clip e LED di segnalazione
Raffreddamento a doppia ventola
Rilevamento termico in tempo reale
Doppi dissipatori di calore

Specifiche TM400x2AD:

Number of Channels: 2
Rated Power (RMS Continuous Power):
200 Watts x 2 @ 4-Ohm
200 Watts x 2 @ 2-Ohm
400 Watts x 1 @ 4-Ohm Bridged
Total Power (Sum of Rated Power): 400 Watts
Dynamic Power (PVC/PowerCube®):
223 Watts x 2 @ 4-Ohm
248 Watts x 2 @ 2-Ohm
449 Watts x 1 @ 4-Ohm Bridged
Bridgeable: Yes
Terminals: Left (+) Right (-)
Frequency Response: 20Hz – 20kHz +/-1dB
Efficiency (average): >75%
Total Harmonic Distortion (THD+Noise):
4-Ohm: <1.0%
2-Ohm: <1.0%

Crossover Controls TM400x2AD:

High-Pass: 50Hz – 250Hz @ 12dB/Octave Butterworth
Low-Pass: 50Hz – 250Hz @ 12dB/Octave Butterworth
All-Pass: Yes
Tone Controls:Treble: 0 to +14 dB @ 12.5 kHz
Bass: 0 to +18 dB @ 45 Hz
Input Sensitivity: 150 mV – 12 V
Signal Input:High/Low Level Input: 4-Pin harness
Power Input Connector: Detachable Compression Terminal
Power Wire Gauge: 8 AWG
Speaker Output Connector: 4-Pin Harness
Speaker Wire Gauge: 16 AWG
Heat Sink Type: Extruded Aluminum
Cooling: Dual Fan Cooled
Remote Controls: Optional PLC2 provides Punch Level Control
Visual Indicators:Power: Blue LED
Protect: Red LED
Input Clip: Red LED3
Output Clip: Blue/Violet/Red LED1,2,3

LED Color Legend TM400x2AD:

1BLUE: <0.5% THD
2VIOLET: 1% THD
3RED: 10%+ THD
Circuit Topology Class: Class-A/D
Operating Voltage: 9 – 16 VDC
Recommended Fuse (not included): 60 A
Max. Current Draw (13.8V Sinewave): 45 A
Average Current Draw (13.8V Music): 23 A
Suggested Alternator: 75 A
Shipping Weight: 2.9 Lbs. (1.31 Kg.)
Dimensions (H x W x D): 4.1 x 10.8 x 17.8 cm
